IMAGE PROCESSING GALLERY
One of the biggest challenges for Juno is Jupiter's intense radiation belts, which are expected to limit the lifetime of both Juno’s engineering and science subsystems. JunoCam is now showing the effects of that radiation on some of its parts. PJ56 images show a reduction in our dynamic range and an increase in background and noise. We invite citizen scientists to explore new ways to process these images to continue to bring out the beauty and mysteries of Jupiter and its moons.
For those of you who have contributed – thank you! Your labors of love have illustrated articles about Juno, Jupiter and JunoCam. Your products show up in all sorts of places. We have used them to report to the scientific community. We are writing papers for scientific journals and using your contributions – always with appropriate attribution of course. Some creations are works of art and we are working out ways to showcase them as art.
We have a methane filter, included for the polar science investigation, that is almost at the limits of our detector’s wavelength range. To get enough photons for an image we need to use a very long exposure. In some images this results in scattered light in the image. For science purposes we will simply crop out the portions of the image that include this artifact. Work is in progress to determine exactly what conditions cause stray light problems so that this can be minimized for future imaging.
The JunoCam images are identified by a small spacecraft icon. You will see both raw and processed versions of the images as they become available. The JunoCam movie posts have too many images to post individually, so we are making them available for download in batches as zip files.
You can filter the gallery by many different characteristics, including by Perijove Pass, Points of Interest and Mission Phase. If you have a favorite “artist” you can create your own gallery. Click on “Submitted by” on the left, select your favorite artist(s), and then click on “Filter”.
A special note about the Earth Flyby mission phase images: these were acquired in 2013 when Juno flew past Earth. Examples of processed images are shown; most contributions are from amateurs.
The spacecraft spin rate would cause more than a pixel's worth of image blurring for exposures longer than about 3.2 milliseconds. For the illumination conditions at Jupiter such short exposures would result in unacceptably low SNR, so the camera provides Time-Delayed-Integration (TDI). TDI vertically shifts the image one row each 3.2 milliseconds over the course of the exposure, cancelling the scene motion induced by rotation. Up to about 100 TDI steps can be used for the orbital timing case while still maintaining the needed frame rate for frame-to-frame overlap. For Earth Flyby the light levels are high enough that TDI is not needed except for the methane band and for nightside imaging.
Junocam pixels are 12 bits deep from the camera but are converted to 8 bits inside the instrument using a lossless "companding" table, a process similar to gamma correction, to reduce their size. All Junocam products on the missionjuno website are in this 8-bit form as received on Earth. Scientific users interested in radiometric analysis should use the "RDR" data products archived with the Planetary Data System, which have been converted back to a linear 12-bit scale.
Jupiter in Blue, Ultraviolet and Near Infrared

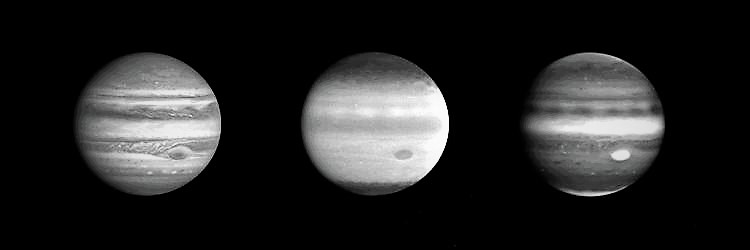

''These three images of Jupiter, taken through the narrow angle camera of NASA's Cassini spacecraft from a distance of 77.6 million kilometers (48.2 million miles) on October 8, reveal more than is apparent to the naked eye through a telescope.
The image on the left was taken through the blue filter. The one in the middle was taken in the ultraviolet. The one on the right was taken in the near infrared.
The blue-light filter is within the part of the electromagnetic spectrum detectable by the human eye. The appearance of Jupiter in this image is, consequently, very familiar. The Great Red Spot (below and to the right of center) and the planet's well-known banded cloud lanes are obvious. The brighter bands of clouds are called zones and are probably composed of ammonia ice particles. The darker bands are called belts and are made dark by particles of unknown composition intermixed with the ammonia ice.
Jupiter's appearance changes dramatically in the ultraviolet and near infrared images. These images are near negatives of each other and illustrate the way in which observations in different wavelength regions can reveal different physical regimes on the planet.
All gases scatter sunlight efficiently at short wavelengths; this is why the sky appears blue on Earth. The effect is even more pronounced in the ultraviolet. The gases in Jupiter's atmosphere, above the clouds, are no different. They scatter strongly in the ultraviolet, making the deep banded cloud layers invisible in the middle image. Only the very high altitude haze appears dark against the bright background. The contrast is reversed in the near infrared, where methane gas, abundant on Jupiter but not on Earth, is strongly absorbing and therefore appears dark. Again the deep clouds are invisible, but now the high altitude haze appears relatively bright against the dark background. High altitude haze is seen over the poles and the equator.
The Great Red Spot, prominent in all images, is obviously a feature whose influence extends high in the atmosphere. As the Cassini cameras continue to return images of Jupiter, it will be possible to construct a three-dimensional picture of how clouds form and evolve by watching the changing appearance of Jupiter in different spectral regions.
JPL manages the Cassini mission for NASA's Office of Space Science, Washington, D.C. JPl is a division of the California Institute of Technology in Pasadena.''
