PJ47 Predict Map

By Tom on 2022-12-01 UT
PJ47 Predict Map

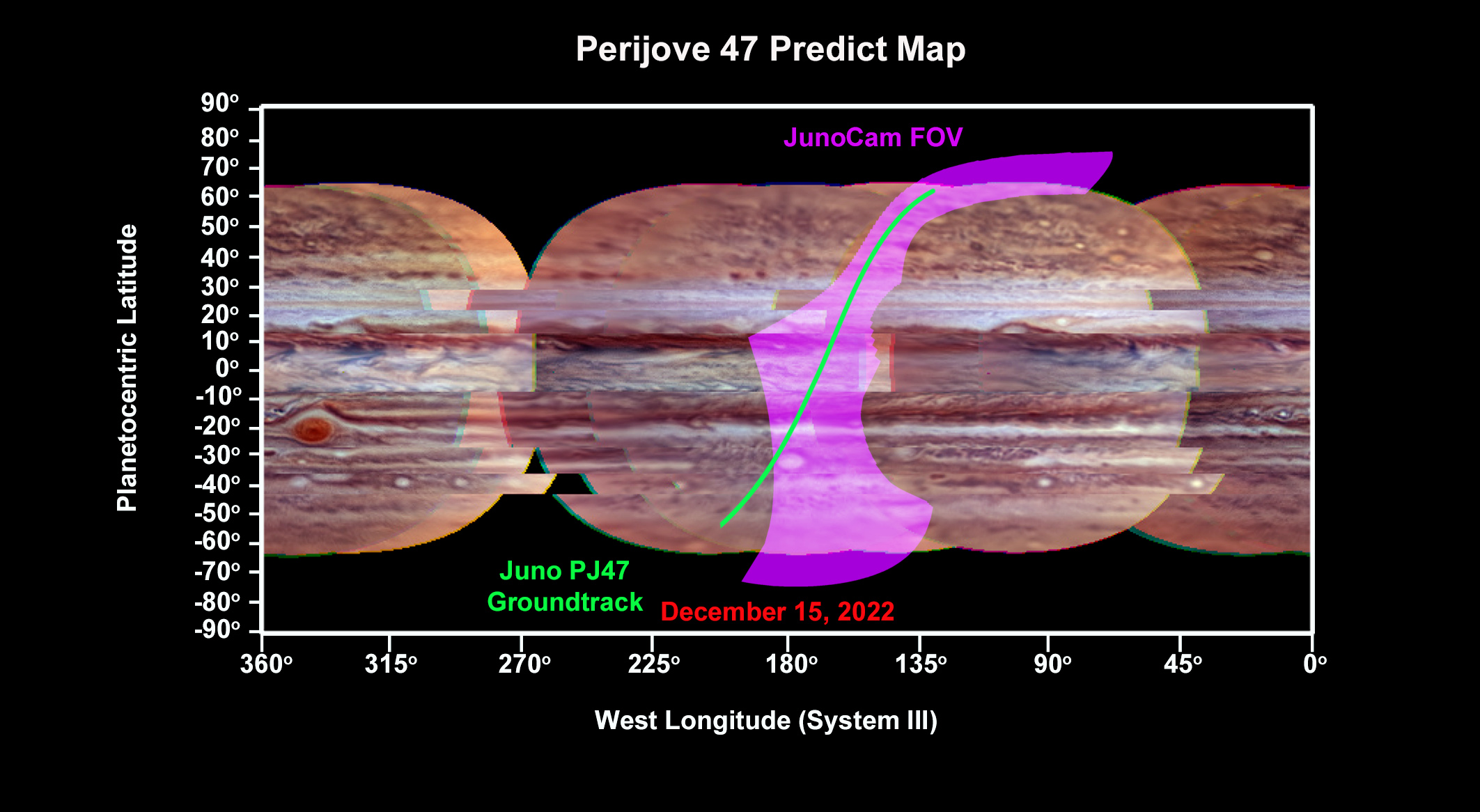

PJ47 Predict Map.   Images courtesy of Chris Go, late November, rolled forward to PJ47 EQX on Dec 15.  JunoCam FOV and Juno Groundtrack superimposed.
animated PJ47 map

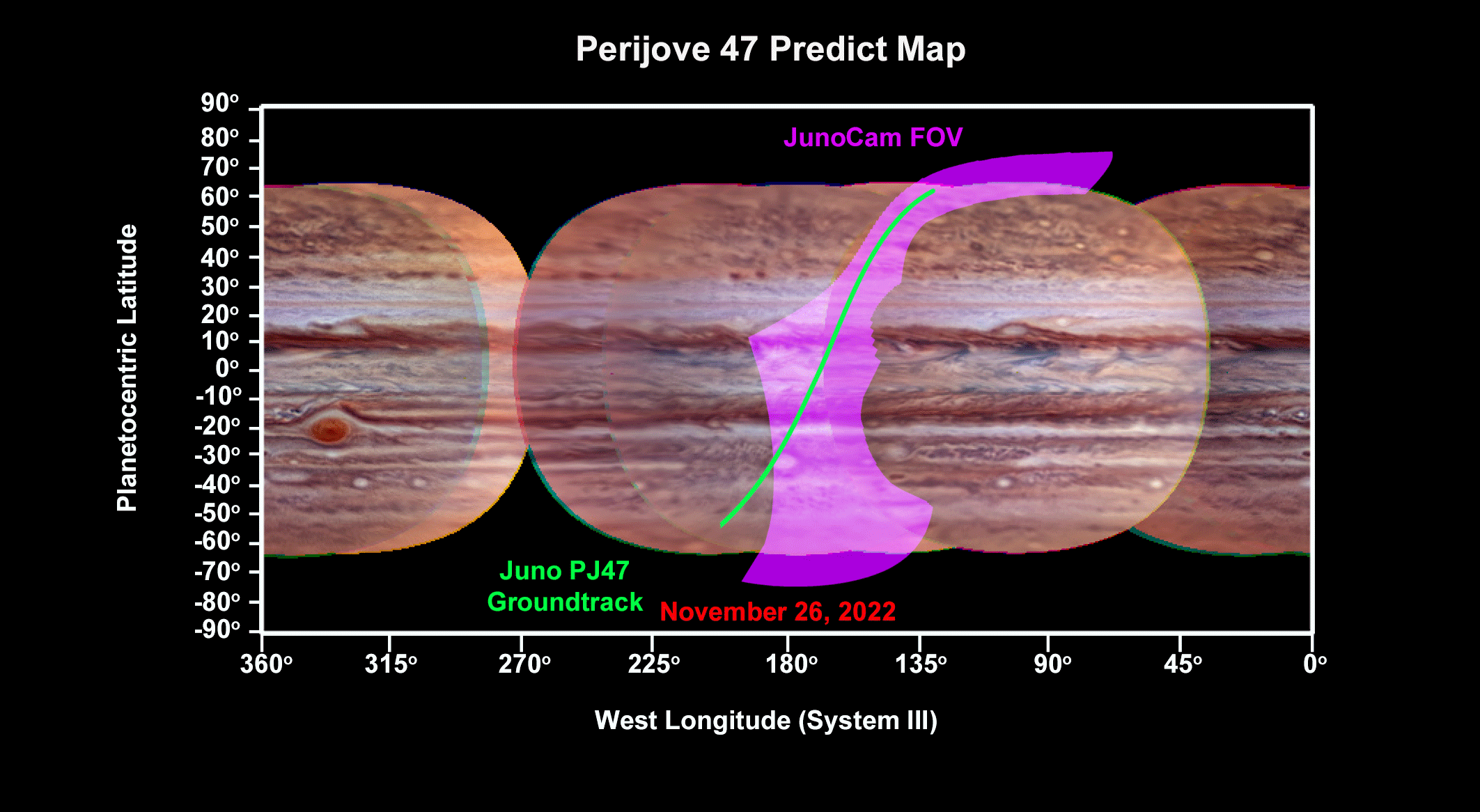

Animated version of map showing general time shift of various latitudes in images to Dec 15 EQX (using an average of Nov 26 as a baseline for original observations)




  1. comment by Philosophia-47 on 2023-01-25 10:27 UT

    Here are the full-size figures for my report on PJ47.

    --John Rogers

  2. comment by Philosophia-47 on 2023-01-25 10:26 UT

    Here is a report on the PJ47 images.  Highlights include:

    --Distant images of Io showing many volcanic calderas and other features;

    --Interactions within the north polar polygon of cyclones;

    --A fortunate view of a new white plume in the NEB, the first convective outbreak in mid-NEB for over a year;

    --A closeup of oval BA.

    A PDF of the report, with miniature figures, is attached. The full-size figures will be attached in the next Comment.

    --John Rogers.
